PRODUCTS

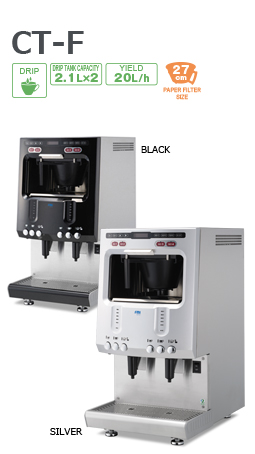

Model╱CT-F
Power╱Single phase 200V 50/60 Hz
Amperage╱20A
Power consumption╱4.0kW
Weight╱38kg
Dimensions╱W383×D555×H710mm

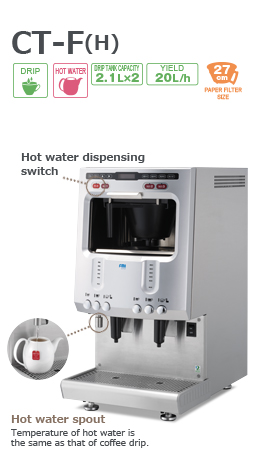

Model╱CT-F(H)
Power╱Single phase 200V 50/60 Hz
Amperage╱20A
Power consumption╱4.0kW
Weight╱38kg
Dimensions╱W383×D555×H710mm

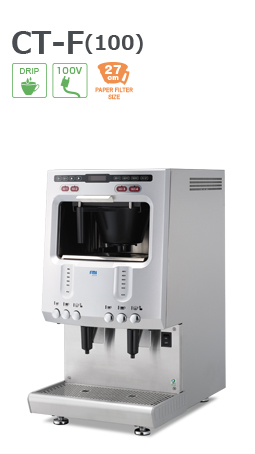

Model╱CT-F(100)
Power╱100V 50/60 Hz
Amperage╱14A
Power consumption╱1.4kW
Weight╱38kg
Dimensions╱W383×D555×H710mm
Option
Small funnel
Small funnel for 1L brewing is available to prevent fresh brewed coffee from changing quality and from wasting remaining coffee.
Space-conscious design
2 tanks in small footprint of width 383mm. The sides and back are made flat to fit in narrow space.
2 tanks + 1 funnel
By turning the funnel right or left, coffee will be brewed in two tanks. With the 2 x 2.1 liter tanks, fresh brew coffee is serviceable at any time even at peak times.
Dosed dispensing as standard
Cafetron′s long-time popular “dosed dispensing” feature became also standard with Cafetron Fresh. This makes operations much easier and effective.
Decanter
Folded nozzles allow dispensing to decanters.
For providing tasty coffee
offee holding temperature can be selected. Insulated and heated drip tanks with precise temperature control hold the brewed coffee as fresh as possible without quality change.
Fine-tuned drip and infusion program
4-segment drip and infusion program enables custom tuning, by showering hot water evenly on the freshly ground coffee, with seamlessly adjustable infusion time and hot water amount. Small amount brewing. Even with small amount of coffee beans like 50g,
Four custom brewing
programs can be stored for easy one-touch brewing at any time.
※CT-F(H) has three custom programs
Safety features
Our funnel safety feature protects you from accidental brewing. CAFE-TRONE Fresh does not start brewing without the funnel set at the right position, preventing potential accidents such as burns.
Auto cleaning makes CAFE-TRONE Fresh always clean
Press a button at the end of the day, after removing the funnel and pouring detergent. The machine will clean itself and rinse itself, and shuts itself automatically.
Drip & Espresso type
A wide variety of lineups for full-season operations
▶Coffee keeping temperature can be set
▶Automatic dosed dispensing
▶Simultaneous drip with two brewings
☑ Drip Coffee ☑ Ice Coffee ☑ Espresso & Cappuccino
1. A wide variety of lineup for full-season operations
Cafetron series has a variety of models. Ice coffee function can be added to the model with espresso function, or with single cup brewing.
2. Coffee holding temperature settable
Wide settable temperature allows to provide coffee with the best condition any time.
3. Simultaneous brewing
Simultaneous brewing with two groups enable to offer steady coffee supply even during peak time

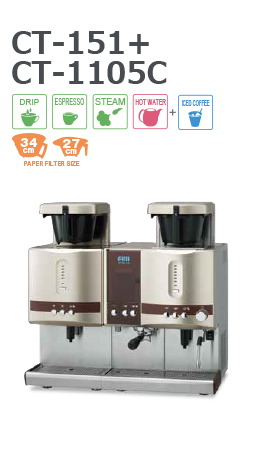

※CT-151+CT-1105C has no simultaneous function.
4. Variety of setting and display function
Variety of settings including auto-start, auto-stop timer, and coffee holding alarm. Coffee holding time can be displayed.
5. Large drip tank
New model has a larger drip tank for hot coffee than the previous one. Coffee can be served easily even during busy time.
6. Auto cleaning
Pour detergent and press a button after the day's operation for automatic cleaning to remove coffee residues and grease.
The machine will switch off automatically after cleaning.
Power╱Three phase 200V 50/60Hz
(Single phase as optional)
Amperage╱18A (30A in single phase)
Power consumption╱6.0kW
Weight╱58kg
Dimensions╱W664×D565×H770mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
(Single drip + ice coffee unit)
Power╱Three phase 200V 50/60 Hz
╱100V 50/60 Hz
Amperage╱18A
╱4.5A
Power consumption╱6.0kW
╱450W
Weight╱58kg
╱40kg
Dimensions╱W383×D555×H710mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
Power╱Three phase 200V 50/60 Hz
Amperage╱18A
Power consumption╱6.0kW
Weight╱58kg
Dimensions╱W454 ×D565×H770mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
Power╱Single phase 200V 50/60 Hz
Amperage╱20A
Power consumption╱4.0kW
Weight╱38kg
Dimensions╱W383×D555×H710mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
Power╱Three phase 200V 50/60 Hz
╱100V 50/60 Hz
Amperage╱18A
╱4.5A
Power consumption╱6.0kW
╱450W
Weight╱58kg
╱40kg
Dimensions╱W764×D565×H770mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
Power╱Three phase 200V 50/60 Hz
╱100V 50/60 Hz
Amperage╱27A
╱4.5A
Power consumption╱8.0kW
╱450W
Weight╱72kg
╱40kg
Dimensions╱W974×D565×H770mm
Installation╱Feeding tap G1/2
Drain water pipe over 50mm
Option
Small funnel
1L small funnel is available as option to avoid coffee quality change and minimize loss.
Automatic dosed dispensing
Adapted automatic dosed dispensing by pump. One touch dispensing improves operation effitiency.
Hot water dispensing
Hot water dispensing can be utilized for a wide variety of usage,such as making usage,such as making tea and cocoa, and warming cups.
※The temperature of hot water is the same as the one for dripping coffee.
Dispensing to decanter
Folding coffee nozzle allows direct dispensing to decanter or thermal pot.
Ice coffee diepensing
Dosed coffee is dispensed at one touch once dispense amount is preset for each cup size.

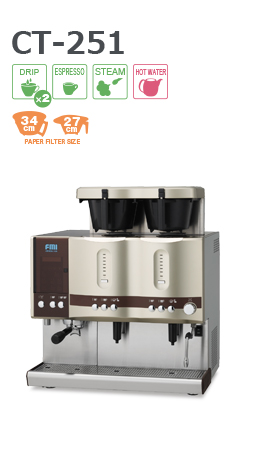

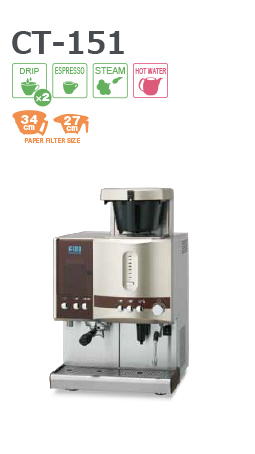

High quality espresso can be brewed.(Espresso type ╱ CT-151 CT-251)
Designate pump for espresso. Stable boiler pressure makes professional espresso.
Steam nozzle for variety of menus(Espresso type ╱ CT-151 CT-251)
Fine textured milk foam with stable pressure. Good for frothing milk for cappuccino and latte, and warming milk for cafe aulait.
Power╱Single phase 200V (50/60Hz)
Amperage╱14.5A
Power consumption╱2.9kW
Weight╱63kg
Dimensions╱W460×D565×H770mm
Installation╱Feeding tap : GI/2
Drain water pipe : Over φ40mm

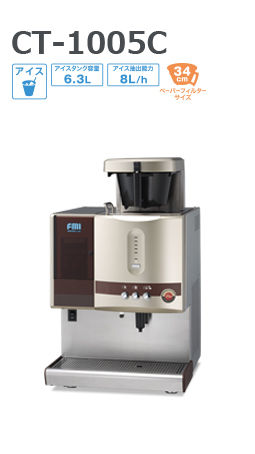

Rapid cooling right after brewing
Rich and mild coffee just brewing is rapidly cooled down and stored in the coffee tank to avoid oxidization.
Peak time operation
Brewing and cooling can be done at the same time. Even during brewing, iced coffee below 10 degrees can be dispensed.
One touch dosed coffee dispensing
When coffee amount is set, dosed coffee is dispensed with one touch.
Folded long coffee nozzle enables dispensing to tall cups from 100 mm to 180mm in height, and decanter.
If stored in the built-in tank in advance, another 6L of coffee can be dispensed during the peak time. Coffee stored in the refrigerator can be put into the buit-in tank via the additional slot for easy serving.
Power╱Three phase 200V 50/60Hz
(Single phase is available)
Amperage╱20A (Single phase: 30A)
Power consumption╱6.0kW
(Hot water : 3.5kW, Boiler : 2.5kW)
Weight╱25kg
Dimensions╱W280×D555×H665mm
Installation╱Feeding tap : GI/2
Drain water pipe : Over φ50mm
6 pre-set menus
6 programs for precise hot water dosing as required by menus.
Steam nozzle for side menus
With stable boiler pressure, foamed milk, as well as soup can be heated smoothly.
Stable supply during peak time
High hourly capacity of 30L guarantees stable hot water supply even during peak times without making customers wait.
Power╱100V 50/60Hz
Amperage╱6.5A
Power consumption╱400W
Weight╱22kg
Dimensions╱W225×D435×H710mm
preset buttons╱3 button + Free button

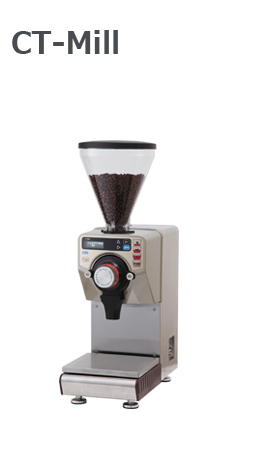

Same dose - no fluctuation
Accurate dose control by accurate measurement instead of time control
3 preset doses adjustable between 10 and 300g
Instant grinding with 3 preset dose buttons
φ340╱800pcs
supported:
CT-150╱151╱250╱251
CT-1105C
CT-1005C
φ270╱1000pcs
supported:
CT-F╱
CT-150╱151╱250╱251
CT-210╱220
φ170╱1000pcs
supported:
CT-F╱
CT-150╱151╱250╱251
※only for funnel
Coffee line
cleaner 100 tablets
(for automatic coffee machine)
Mill clean «NEW»
6 bottles(1L╱1 bottle)
(for Milkline)
Ecojetsun
6 bottles(1L╱1 bottle)
(for Milkline)
Bubble clean
(oxgen bleach)
6 bottles(500g╱1 bottle)
QC7-CB5-S
QC7-CB5-S…head+cartridge
7CB5-S…cartridge
QL3-2FC «NEW»
QL3-2FC…head+cartridge
QL3-2FC…cartridge
D-4D•KC «NEW»
D-4D…head+cartridge
D-4DKS…cartridge
NFX-LC «NEW»
NFX-LC…head+cartridge
NFX-LC…cartridge
These specifications are subject to change without advance notification.
This model is for use in the intended country only, and cannot be used in a country where the voltage and frequency are different.
Pleaseask local distributor or a specialist for installation.
If heat builds up inside the machine, this will affect electric control parts, and could cause malfunction or fire.
Please put the machine over 100mm apart from the side, and over 30mm from the back.
To prolong the life of the machine, please make sure to install a water filter, and replace its cartridge at an appropriate time.
